karyoploteR基因组数据可视化

2023-07-19 10:59:17 星期三
## karyoploteR介绍
> ikaryoploteR is an R package to create karyoplots, that is, representations of whole genomes with arbitrary data plotted on them. It is inspired by the R base graphics system and does not depend on other graphics packages. The aim of karyoploteR is to offer the user an easy way to plot data along the genome to get broad genome-wide view to facilitate the identification of genome wide relations and distributions.

karyoploteR，一个适用于所有基因组数据（any data on any genome）非圆环布局（non-circular layouts）的可视化 R/Bioconductor 包。开发该包的团队的目标是致力于打造一款能够像 Circos 那样灵活多变，但又可以满足用户更方便地使用直线（straight lines）而不是圆环（circles）展示基因组数据的工具。

## 教程
Bioconductor地址: http://bioconductor.org/packages/karyoploteR/
Github地址: https://github.com/bernatgel/karyoploter
文献: https://doi.org/10.1093/bioinformatics/btx346
案例教程：https://bernatgel.github.io/karyoploter_tutorial/

## 安装
```if (!require("BiocManager", quietly = TRUE))
    install.packages("BiocManager")
BiocManager::install("karyoploteR")
```

## 实战测试
```
## 导入相关依赖包
library(ggplot2)
library(karyoploteR)
library(biomaRt)

## 设置参数及读取相关数据
setwd("E:/4.生信流程/5.CNVseq/CNVseq相关文件/报告手绘出图/10163/")
sample="10163"
file1="10163.cnvall.txt"

## 读取文件并设置数据格式
data1 <- read.table(file = file1, sep="\t", header=TRUE, stringsAsFactors = FALSE, blank.lines.skip=TRUE, skipNul=TRUE)
print(names(data1))
data1<-data1[,c("Chr","Start","End","Ratio")]
names(data1)<-c('chr','start','end','ratio')
data1$ratio<-(data1$ratio)*2
data1$pos<-(data1$start+data1$end)/2
if(nrow(data1[which(data1$ratio>4),])>1){
  data1[which(data1$ratio>4),]$ratio<-4
}

## 转换成染色体区间
dataA <- toGRanges(data1[,c('chr', 'pos','pos','ratio')])

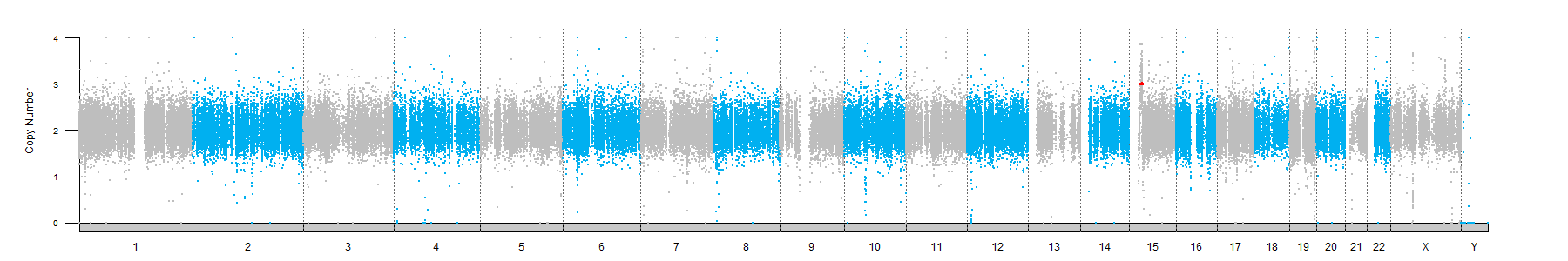

## 绘制无间隙的染色体图
# 输出到 png
outname<-paste(sample,'-WES-CNV-all.png',sep='')
png(outname,width=1800,height=300, units = "px")

pp <- getDefaultPlotParams(plot.type=4) # 查看默认参数设置
pp$ideogramlateralmargin <- 0  # 修改某一个参数,两个染色体中间就没有了缝隙
#kp <- plotKaryotype(genome="hg19", plot.type=4, cytobands = GRanges(), labels.plotter = NULL,  plot.params=pp, main=paste(sample," CNV plot",sep=''))
kp <- plotKaryotype(genome="hg19", plot.type=4, cytobands = GRanges(), labels.plotter = NULL,  plot.params=pp)
#kpDataBackground(kp, col=c("#E1EAF2", NA), r0=-0.05, r1=0.95) # 先加背景色，否则会压住轴线
kpDataBackground(kp, col=c(NA), r0=-0.05, r1=0.95)
#kpPoints(kp, data=dataA, ymax = 4, ymin=0, col="#00B0F0", y=dataA$ratio, r0=-0.05, r1=0.95, cex = 0.2)
kpAxis(kp, ymax = 4, ymin=0, numticks=5, label.margin = 0.01, r0=-0.05, r1=0.95, cex=0.8) # 添加轴
kpAddChromosomeNames(kp, chr.names=c(1:22, 'X', 'Y'), cex.lab=2, lwd=2) # 加染色体名
kpAddLabels(kp, labels="Copy Number", pos=3, label.margin = 0.03, srt=90, lwd=2)
kpAddChromosomeSeparators(kp, col="#666666", lty=3)

chros<-unique(data1$chr)
colsa<-c("#00B0F0", "grey")
n = 0
# 按染色体一条条绘制
for(chro in chros){
  n<-n+1
  dataTmp<-data1[which(data1$chr==chro),]
  dataTmp <- toGRanges(dataTmp[,c('chr', 'pos','pos','ratio')])
  kpPoints(kp, data=dataTmp, ymax = 4, ymin=0, col=colsa[n%%2+1], y=dataTmp$ratio, r0=-0.05, r1=0.95, cex = 0.2)
  #kpPoints(kp, chr="chr15", x=23684689, y=3, ymax = 4, ymin=0, cex=.5, r0=-0.05, r1=0.95, col="red") #添加单点，那就可以对CNV部分的点进行其他颜色设置了
}
#kpAbline(kp, h=c(2), ymax = 4, ymin=0,col="black", lwd=0.5, r0=-0.05, r1=0.95) #添加水平线
#kpAbline(kp, h=c(1, 3), ymax = 4, ymin=0,col="red", lwd=0.5, r0=-0.05, r1=0.95) #添加水平线
kpAbline(kp, h=1, chr="chrX", ymax = 4, ymin=0,col="red", lwd=2, r0=-0.05, r1=0.95) #添加水平线
#kpAbline(kp, h=3, chr="chr15", ymax = 4, ymin=0,col="blue", lwd=2, r0=-0.05, r1=0.95) #添加重复水平线
kpSegments(kp, chr="chr15", x0=23684689, x1=28557995, y0=3, y1=3,  ymax = 4, ymin=0, lwd=4, r0=-0.05, r1=0.95, col="red") #添加某一个片段
dev.off()

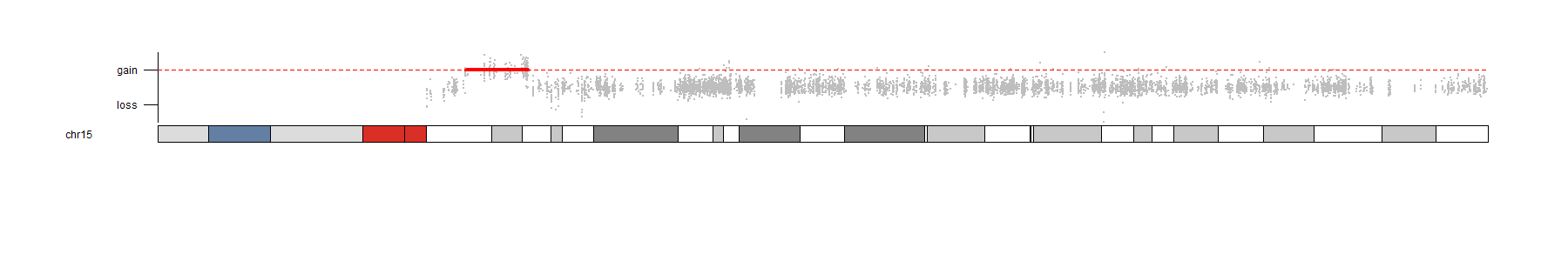

## 绘制单条染色体的细节
############ for chrX plot #############
outname<-paste(sample,'-WES-CNV-one.png',sep='')
png(outname,width=1800,height=300, units = "px")

chro<-"chrX"
kp <- plotKaryotype(plot.type = 2, chromosomes = chro)
dataTmp<-data1[which(data1$chr==chro),]
dataTmp <- toGRanges(dataTmp[,c('chr', 'pos','pos','ratio')])
kpAxis(kp,r0=-0.05, r1=0.95, data.panel=1, ymin=0, ymax=4, side = 1, numticks = 5, tick.pos = c(1, 3), labels = c('loss', 'gain'))
kpPoints(kp, data=dataTmp, y=dataTmp$ratio, col=colsa[1], r0=-0.05, r1=0.95, ymin=0, ymax=4, cex = 0.2)
kpAbline(kp, h=1, r0=-0.05, r1=0.95, col='red', ymin=0, ymax=4, lty=2, cex=0.1) #Loss
kpAbline(kp, h=3, r0=-0.05, r1=0.95, col='red', ymin=0, ymax=4, lty=2, cex=0.1) #Gain
kpSegments(kp, chr="chrX", x0=23684689, x1=28557995, y0=3, y1=3,  ymax = 4, ymin=0, lwd=4, r0=-0.05, r1=0.95, col="red") #添加某一个片段
dev.off()

##################################################################################
```

![](/media/202307/2023-07-19_105846&ifoZ80jKcdO5AlpeMI9u.png)

![](/media/202307/2023-07-19_105846&KRHoxNM2gABEq6eXw7u5.png)
